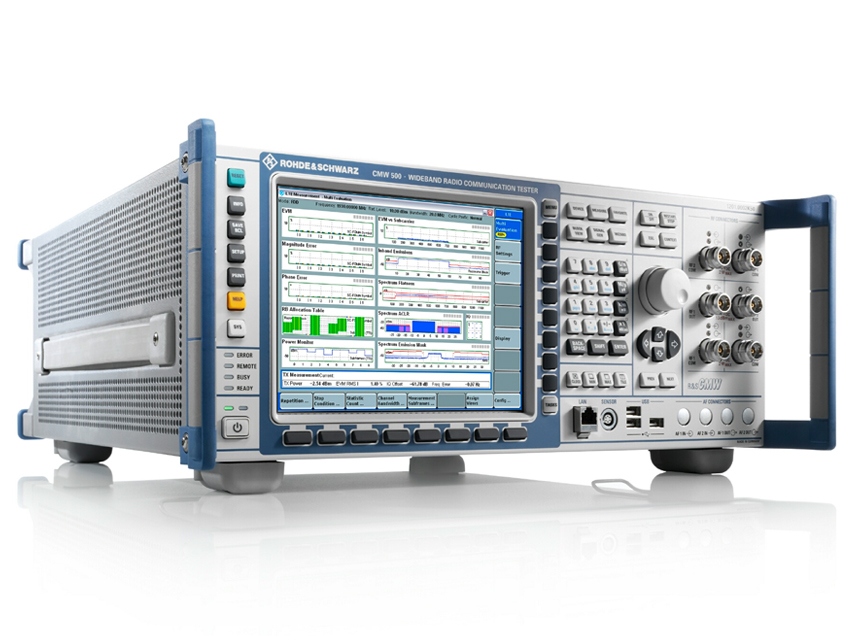

The R&S®CMW500 is present in almost all LATAM carriers laboratories being a key equipment for homologation. It is focused in LTE testing but it is also wide used for 2G and 3G testing.
Supported technologies:
VoLTE,
LTE FDD,
LTE TDD(TD-LTE),
WCDMA/HSPA+,
GSM/GPRS/EDGE

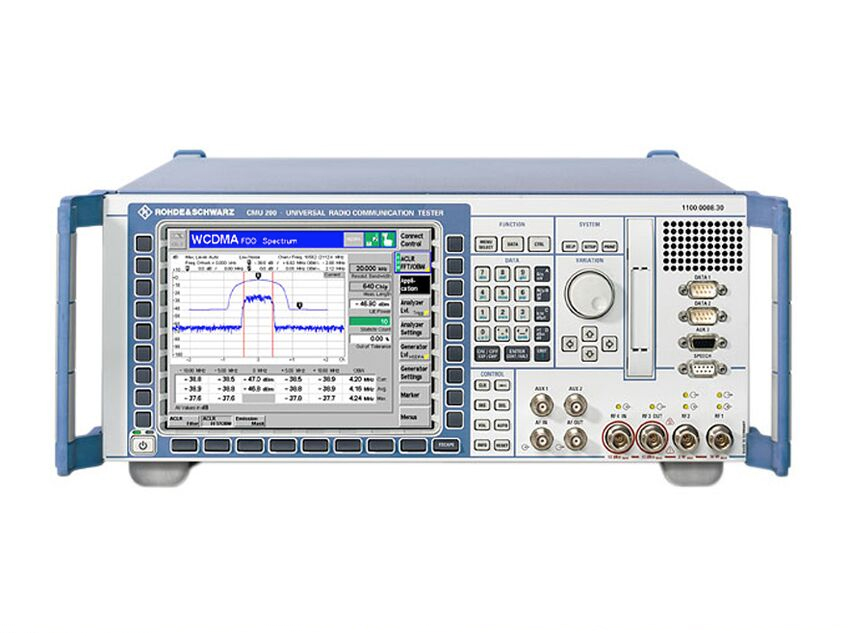

The R&S CMU200 is focused for 2G and 3G testing for almost all LATAM carriers, being one of the must reliable measurement equipments.
Supported Technologies:
GSM/GPRS/EDGE,
3GPP WCDMA (FDD),
3GPP HSPA,
GSM-AMR WB

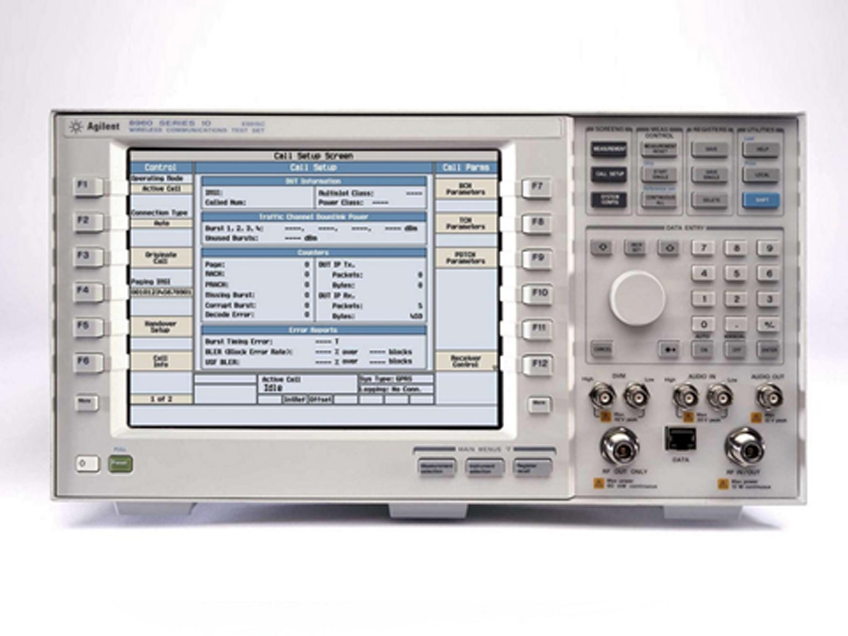

The Agilent 8960 is used for 2G and 3G testing in some latam carriers, being one of the first mesurement equipment for homologation process being a good alternative for testing.
Supports :
GSM/GPRS/EGPRS/E-EDGE,
W-CDMA/HSPA/HSPA+
Specifications:
292 to 2700 MHz frequency range includes all commercial 3GPP and 3GPP2 frequency bands
-110 to -13 dBm output level range with modulation
VSWR < 1.2:1 400 to 2000 MHz
< +/-1.0 dB channel power measurement accuracy

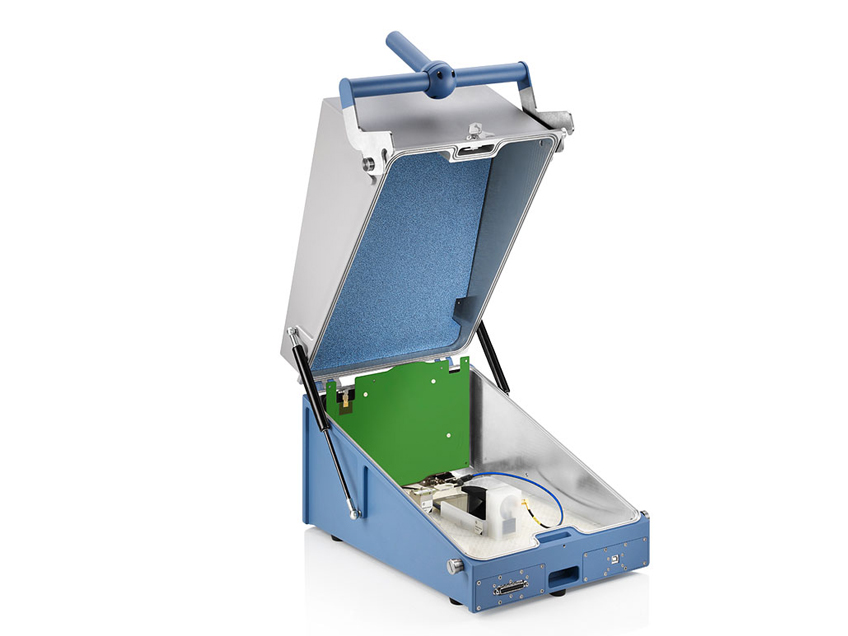

The R&S®CMW-Z10 is made of solid aluminum. It is firmly closed by means of a lever handle with a defined stop. The bottom and cover will not distort under normal conditions. This ensures uniform compression of the sealing cords provided around the entire box
MOTs se adapta a las necesidades de los clientes y el mercado, utilizando diferentes dispositivos y metodos para obtener resultados mas optimos.
CMW-Z10:
Frequency range:
Frequency range 0.4 GHz to 6 GHz
VSWR R&S®CMW-Z10
open
0.4 GHz to 1.4 GHz< 3.5
1.4 GHz to 3.5 GHz< 2
3.5 GHz to 6 GHz< 3.5
Kye facts:
Frequency range up to 6 GHz
Excellent shielding characteristics (< 80 dB)
Ergonomic closing mechanism
Sufficient space for today's tablet and some PCs
Size:
W × H × D
320.9 mm × 267.5 mm × 527.7 mm (12.6 in × 10.5 in × 20.8 in)
Ideal for:
Medium devices with Support for: 2G, 3G and LTE

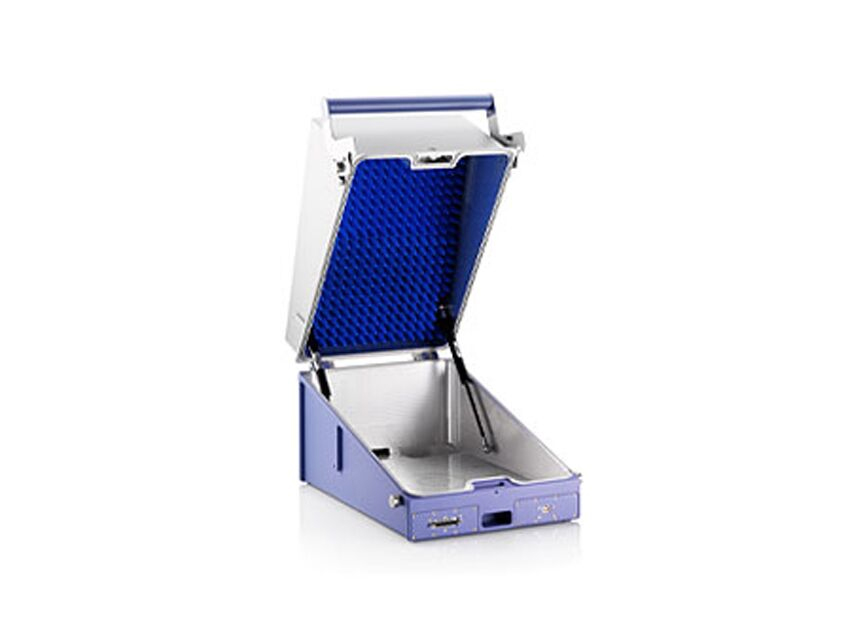

The broadband Antenna Coupler R&S CMU-Z10 is the basis, which in conjunction with the RF Shielding Cover R&S CMU-Z11 can be upgraded to a fully enclosed RF shielded chamber.
CMU-Z11
Frequency range:
Frequency range 0.4 GHz to 6 GHz
VSWR R&S®CMU-Z11
0.77 GHz to 0.87 GHz < 3.5
0.87 GHz to 0.96 GHz < 3.5
1.7 GHz to 2.0 GHz < 3.5
2.0 GHz to 2.2 GHz < 3.5
Kye facts:
Upgrades the antenna coupler to a high-grade RF shielded chamber
No interference affecting the measurement results
Size:
W × H × D
250 mm × 180 mm × 430 mm
(9.84 in × 7.09 in × 16.93 in)
Ideal for:
Small devices with Support for: 2G, 3G and LTE

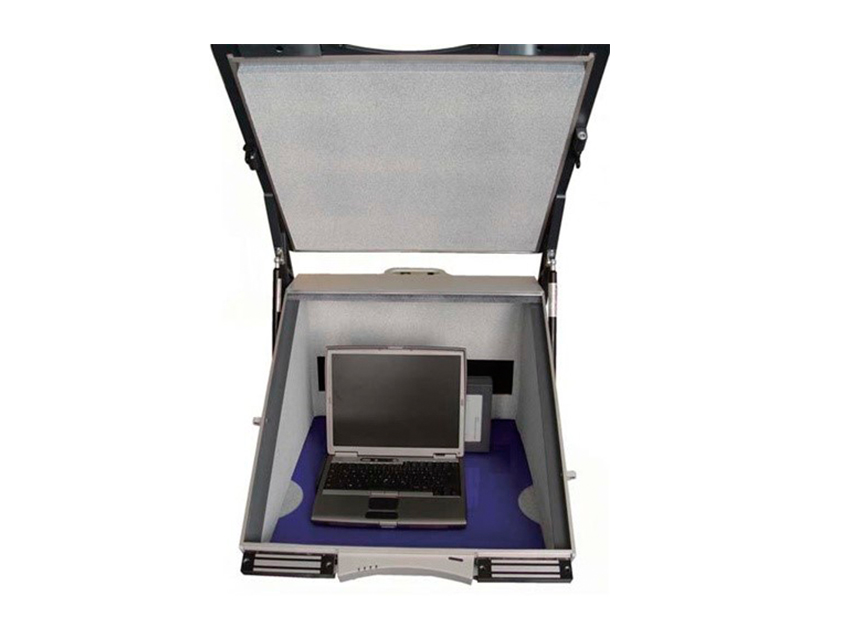

The Aeroflex 4933 RF Shield is the biggest shieldbox available in LATAM RF laboratories, being a good choice for large devices.
Frequency range:
Frequency range 0.7 GHz to 6 GHz
Ideal for:
Devices with large size; Lap tops ,Tablets, etc.
Size:
Outer Width 645 mm (25.4”)
Outer Height, Lid Closed 467 mm (18.4”)
Outer Height, Lid Open 1015 mm (40”)
Outer Depth 750 mm (29.5”)
Usable Inner Width 528 mm (20.8”)
Usable Inner Depth 571 mm (22.5”)
Usable Inner Height, Front 60 mm (0.3”)
Usable Inner Height, Rear 363 mm (14.3”)
Weight 28 kg (62 lbs.)

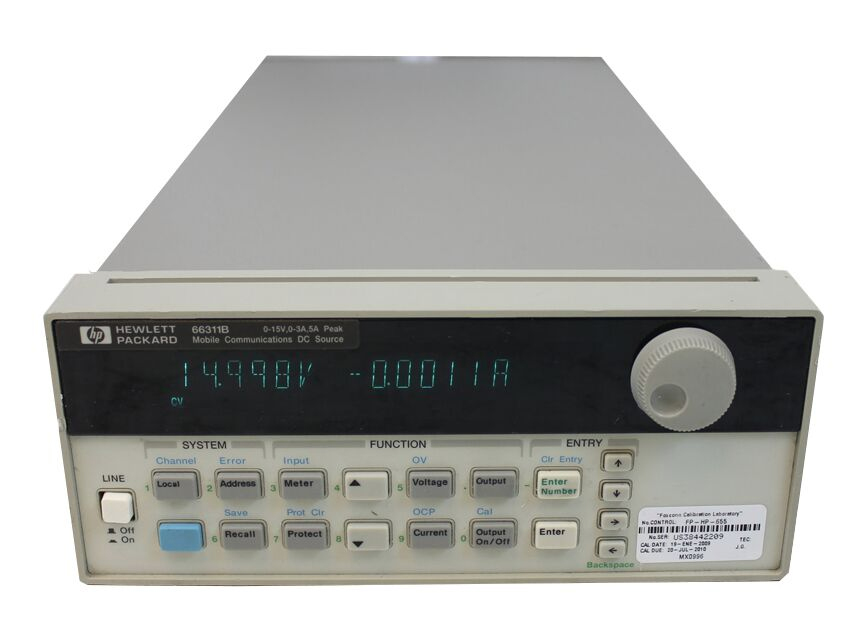

The Keysight 66311D mobile communications DC source provides high throughput, exceptional sourcing and precision measurement.
The features present are perfect for power co
Voltage 0-15v
Current 0 to 3A
DC measurement accuracy
Voltage 0.03%+ 5mv
-20 mA to + 20 mA range 0.1%+ 2.5A
programmable output resistance
range -40 m
programming accuracy 0.5% + 2m
Resolution 1m
The Keysight 66311D mobile communications DC source provides high throughput, exceptional sourcing and precision measurement.
The features present are perfect for power co
Voltage 0-15v
Current 0 to 3A
DC measurement accuracy
Voltage 0.03%+ 5mv
-20 mA to + 20 mA range 0.1%+ 2.5A
programmable output resistance
